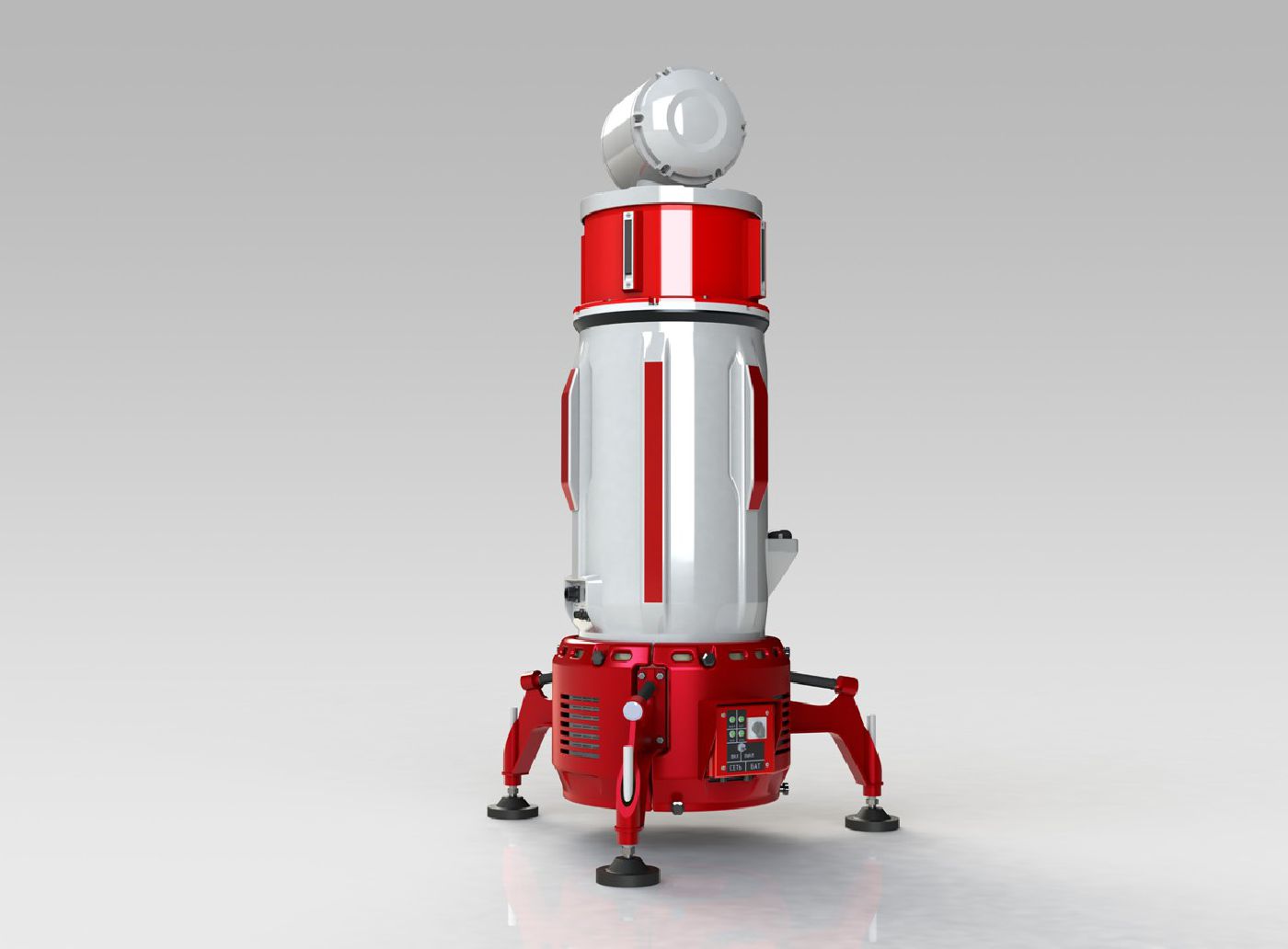

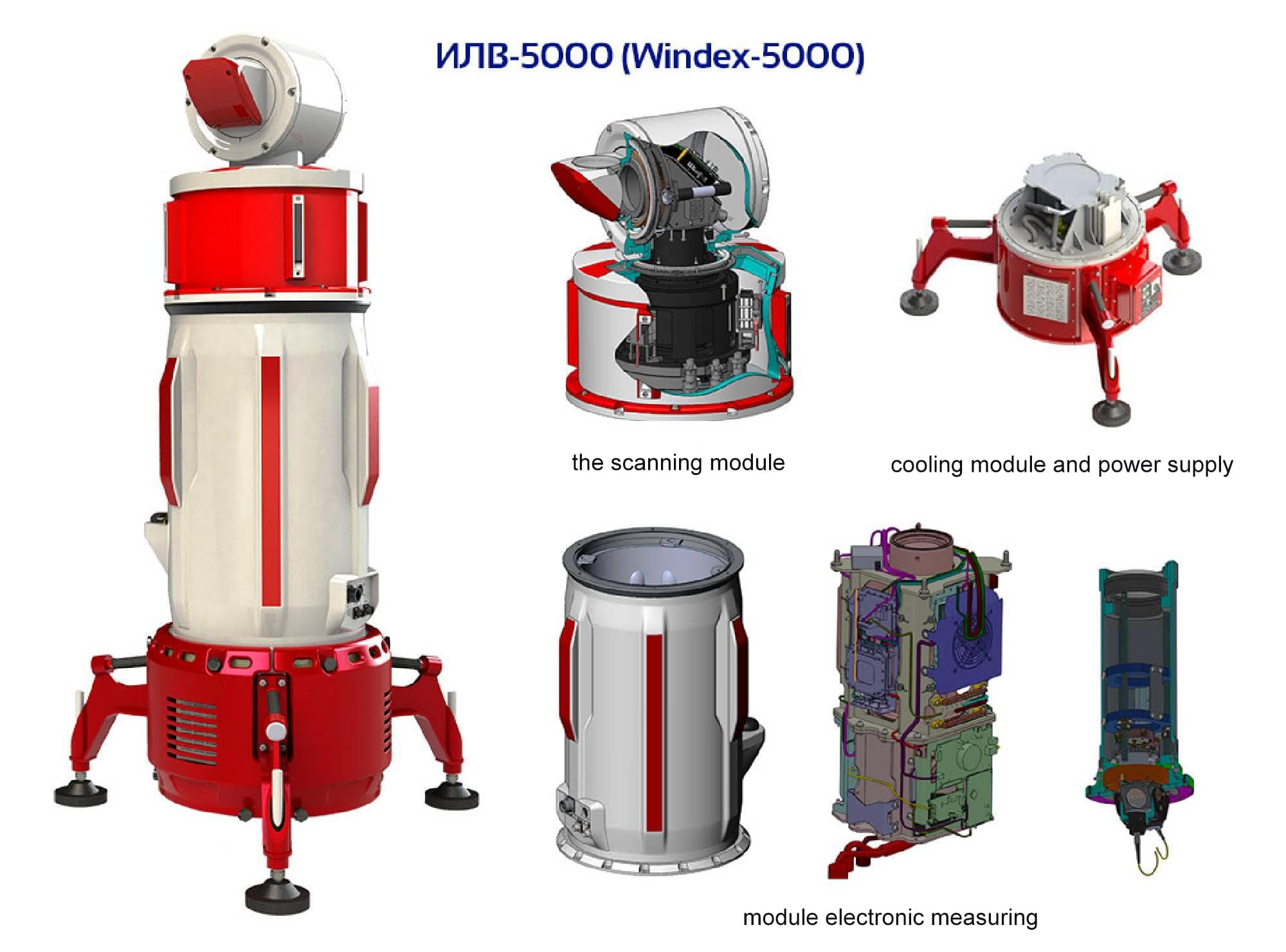

WINDEX-5000

WINDEX-5000 determines the level of turbulence in the air flow and identifies the horizontal wind shear and vertical gusts. WINDEX-5000 can be used as a wake vortex scanning module.

The Low-Level Wind Shear Alerting System developed by our experts in cooperation with the Laser Systems company is designed to ensure the safety of flights during take-off and landing operations.

EFFICIENTLY SOLVES THE FOLLOWING TASKS:

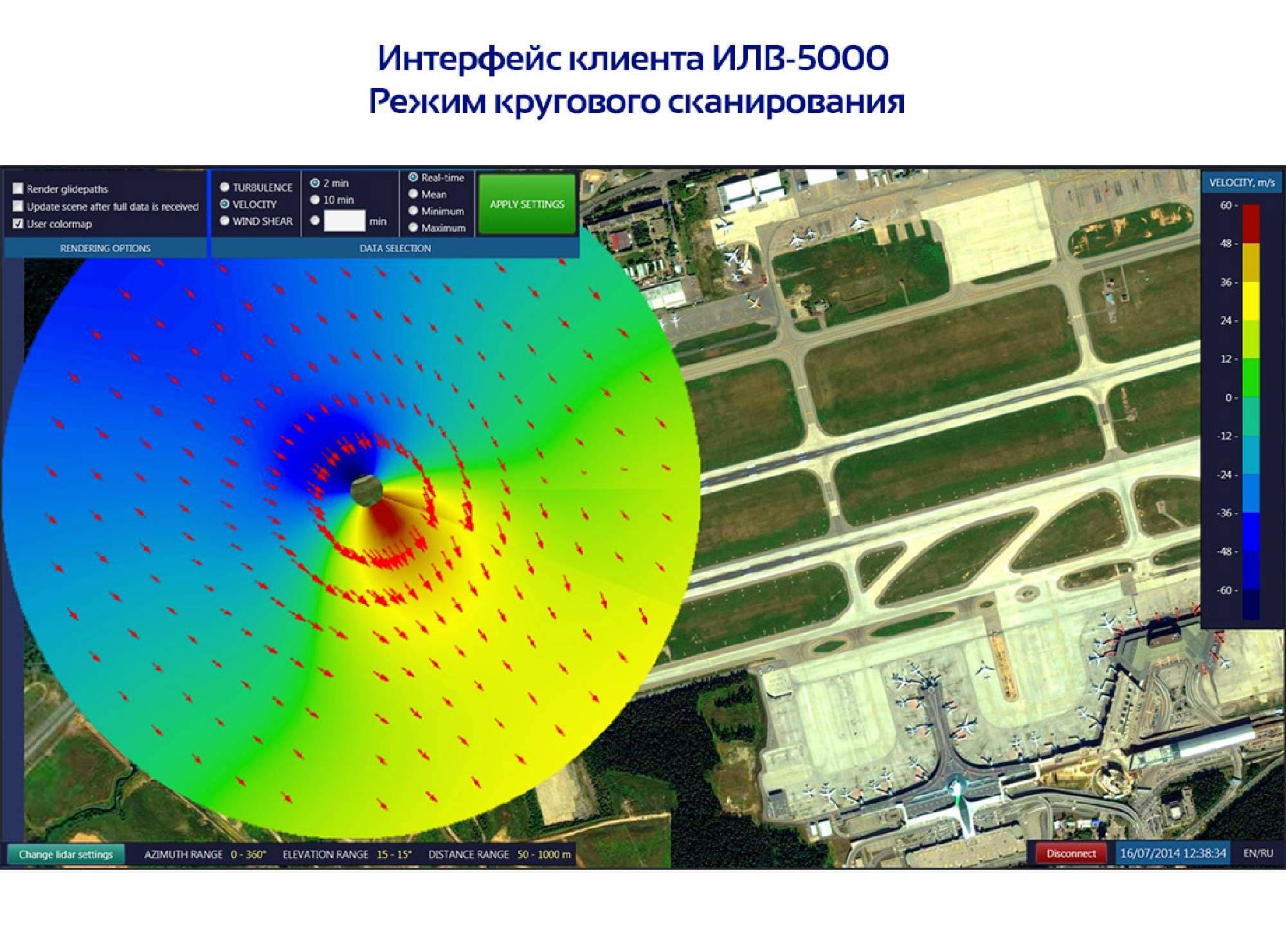

  • Promptly and remotely determining and displaying information about the vector direction and the magnitude of an airflow at specified altitudes;

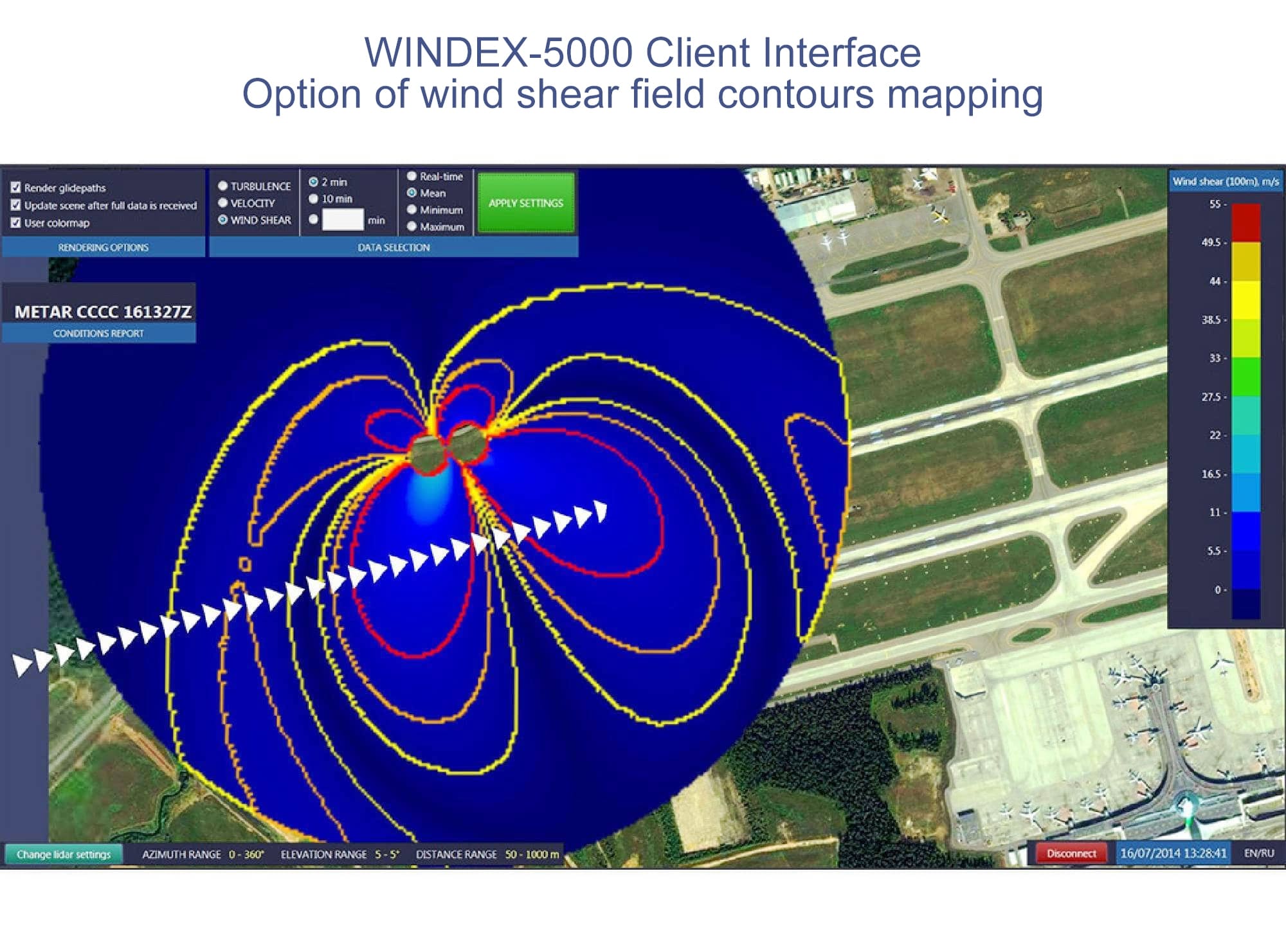

  • Measuring turbulence and determining the horizontal wind shear and vertical gusts;

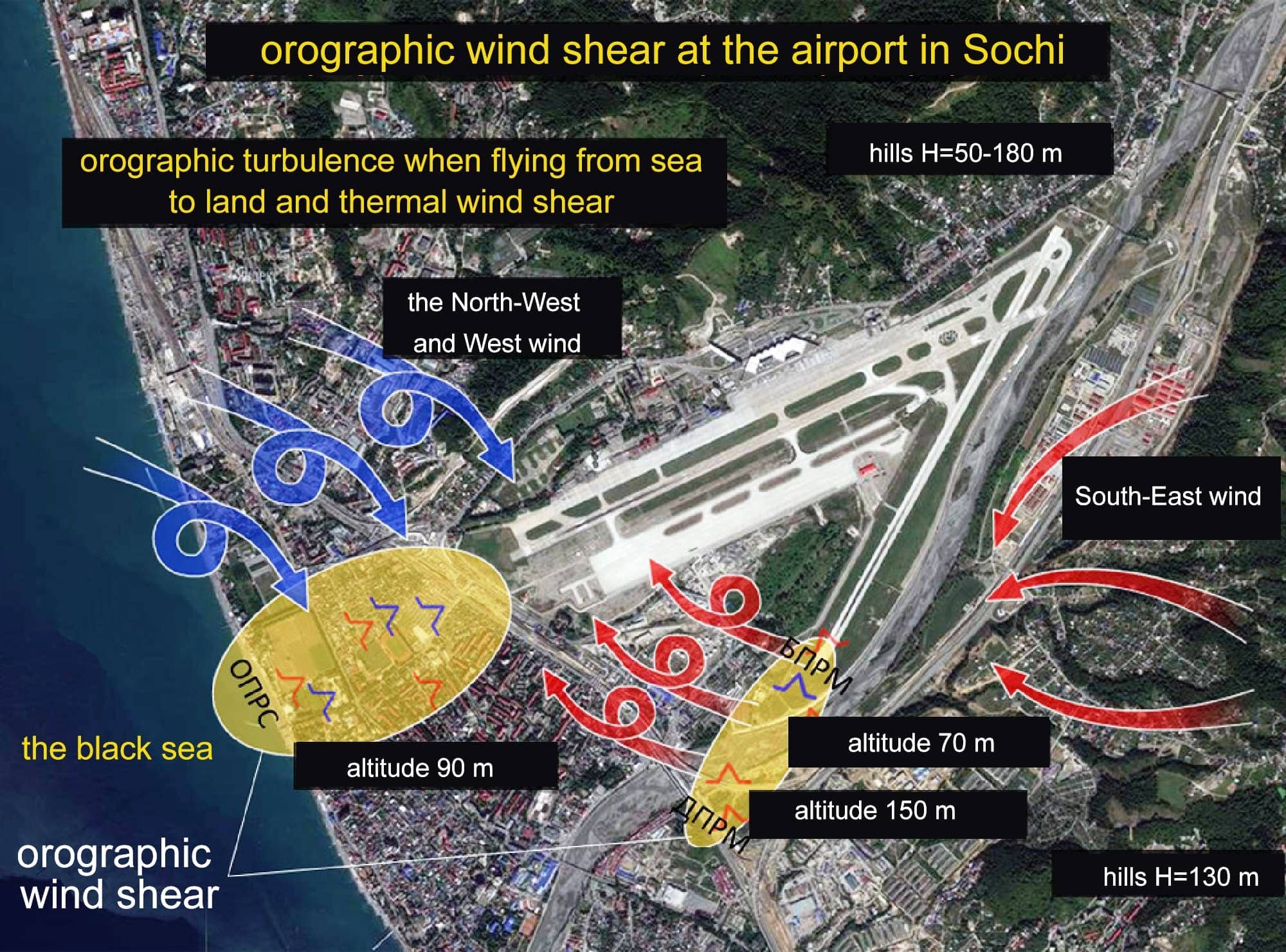

  • Identifying low-level wind shear and turbulence near airfields, heliports and other landing sites for aircraft;
  • Promptly providing information about low-level wind shear and turbulence to all air traffic participants, including aircraft crews;

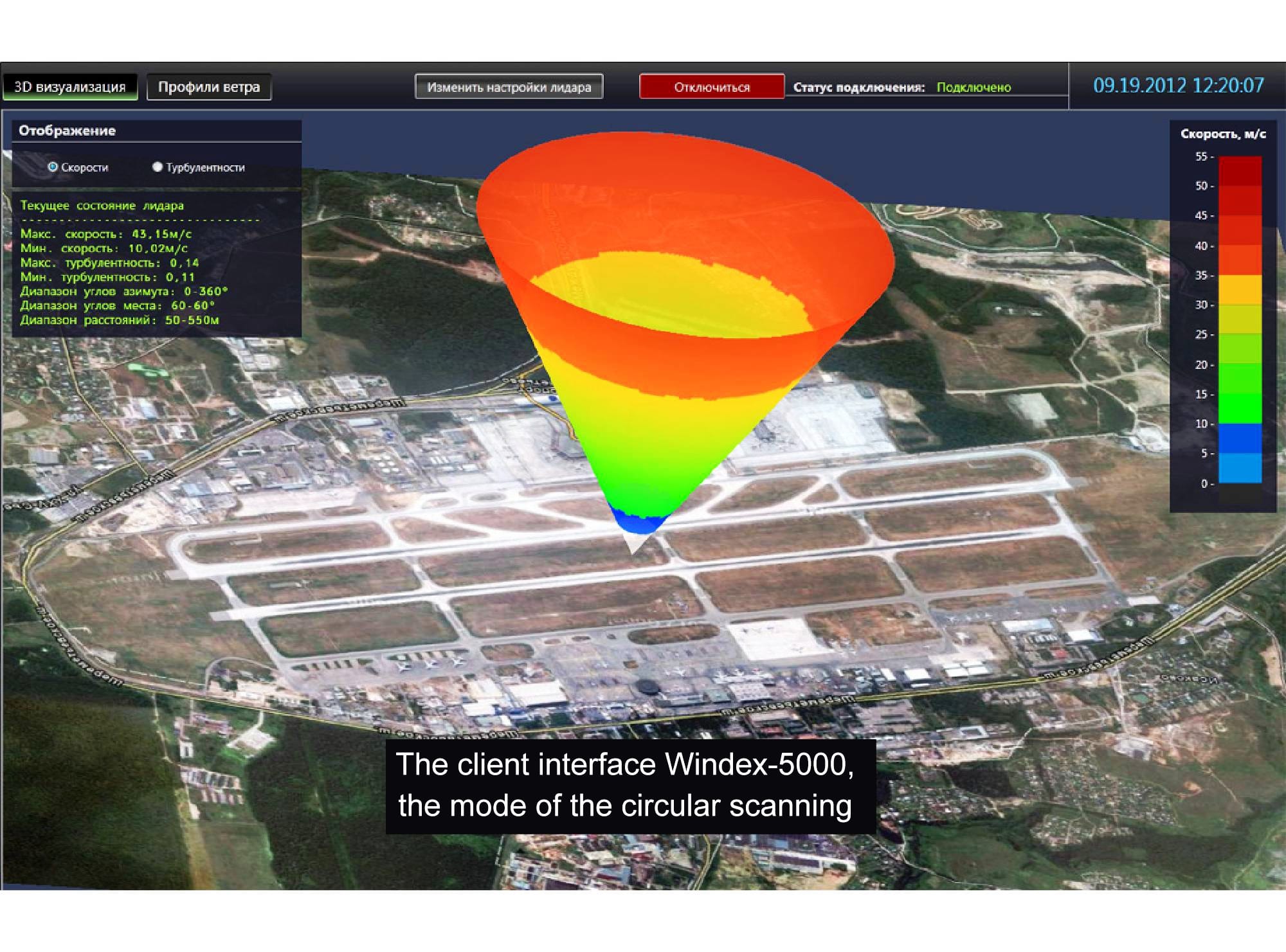

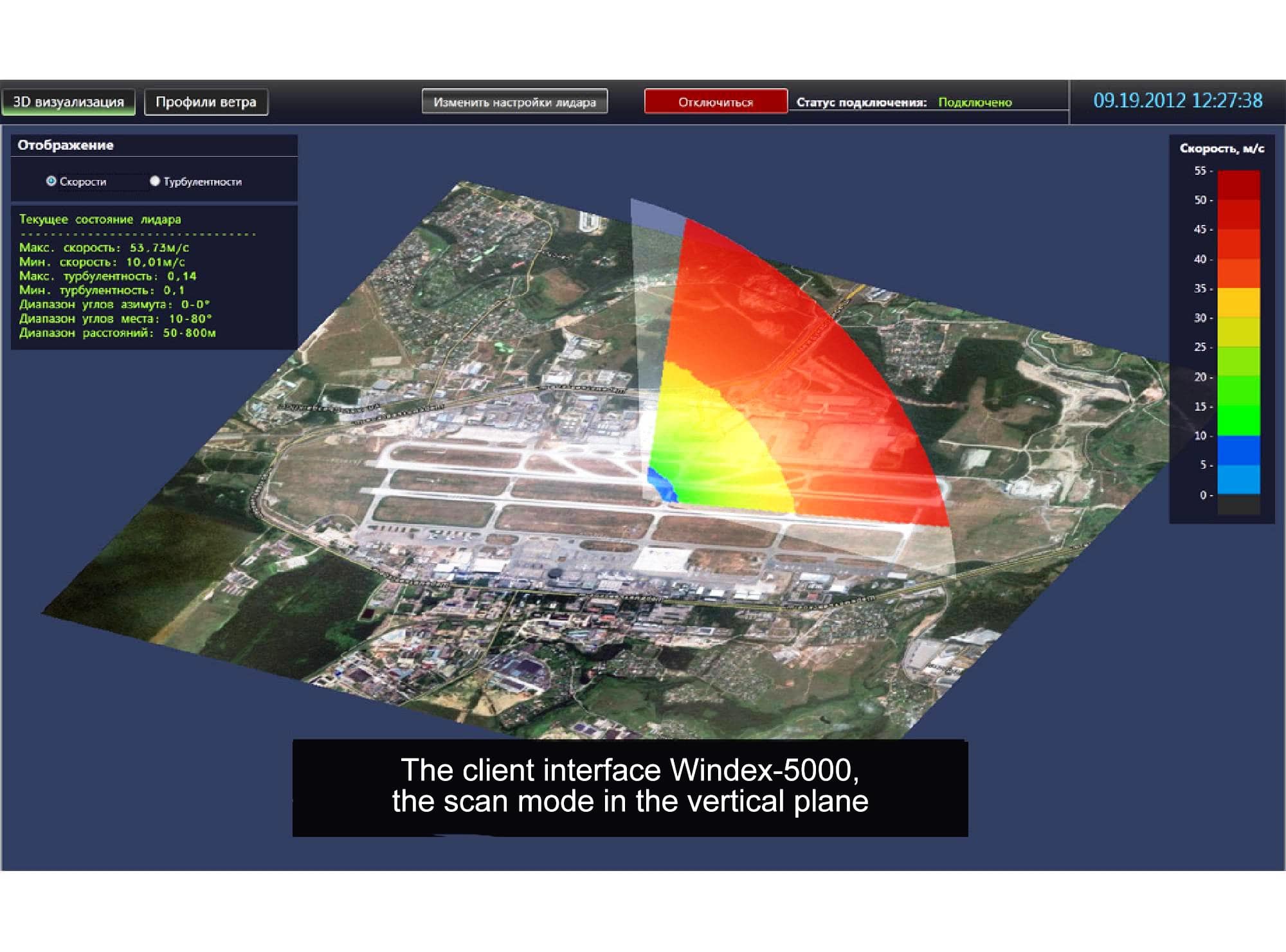

  • Conducting 3D-mapping of wind fields;

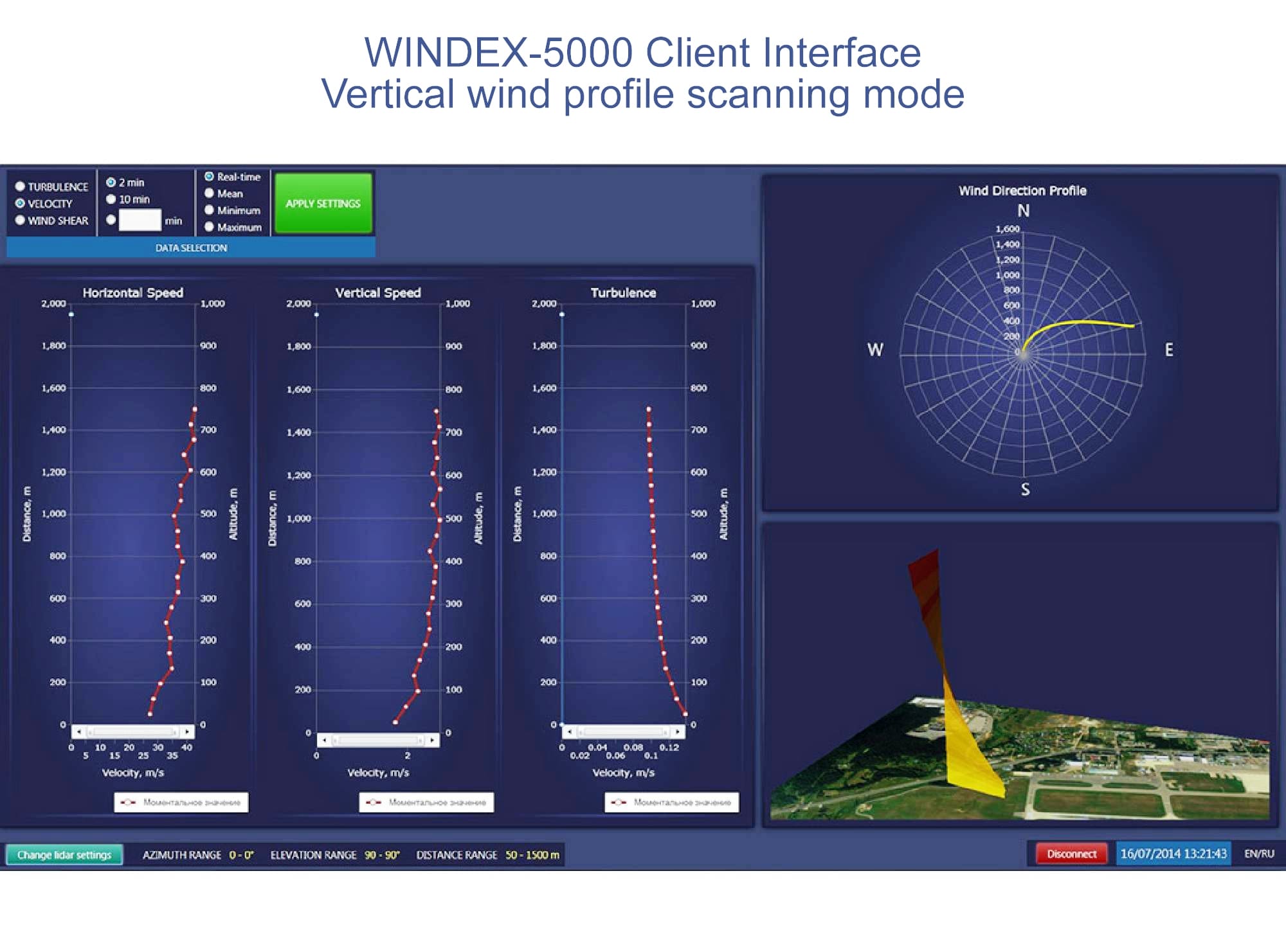

  • Working in a profiler mode in the intended direction;
  • Detecting wake vortices;
  • Determining cloud level.

WINDEX-5000 APPLIES TO THE FOLLOWING FIELDS:

Airports

Heliports, airfields

Control of atmospheric stability.

Parachuting

Paragliding

Determination of the wind shear speed and direction.

Recreation areas

Holiday resorts

Regional meteorological forecasts.

Boat traffic

Sea transport

Detection of weather hazards on the shipping routes.

Metropolitan cities

Towns

Observation of the general dynamics of atmospheric conditions.

Industry

Manufacturing

Forecasting the spread of emissions from enterprises.

TECHNICAL CHARACTERISTICS:

  • Laser wave length, nm: 1550 1570;
  • Pulse duration, ns: 400;
  • Pulse energy, J: 100;
  • Positional resolution, : not exceeding 0.1;
  • Scanning speed, /s: from 0,5 to 5;
  • Rate of change in direction of the beam scanning (without measurements), /s: 45;
  • Averaging time, s: from 0.1 to 15;
  • Minimum measurement range, m: not exceeding 100;
  • Spatial resolution, m: not exceeding 75;
  • Wind speed measurement range, m/s: from 1 to 60;
  • Wind speed measurement accuracy, m/s: 0.25;
  • Wind direction measurement accuracy, : 5;
  • Working temperatures, C: from -50 to +50;
  • Mark of resistance to external influences: IP65;
  • Dimensions, LxWxH, mm: 1700 1000 880;
  • Power consumption with thermoregulation system, W: 800;
  • Weight, kg: 145.

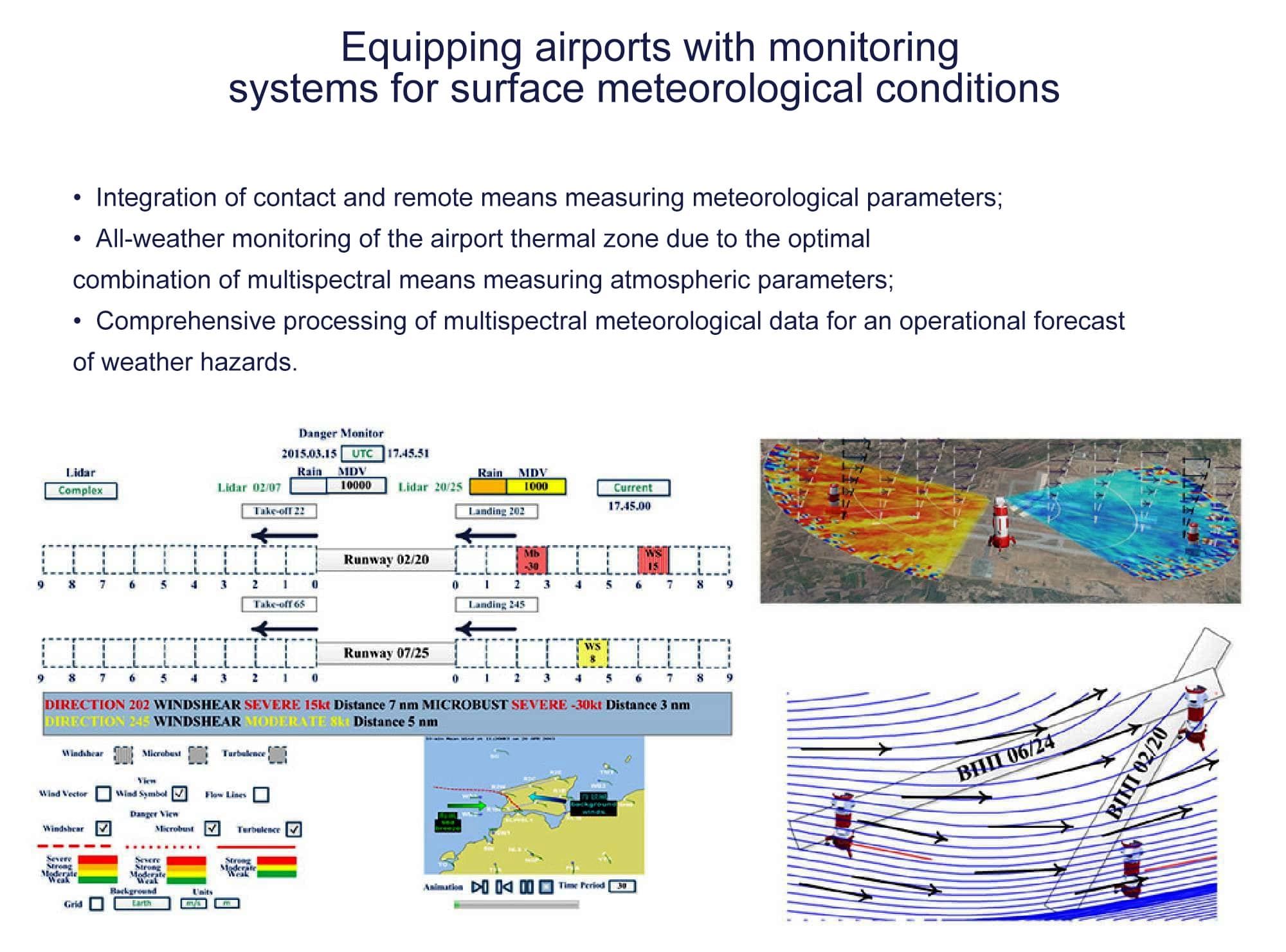

WINDEX-5000 allows to transmit alerting messages to an AT controller if wind hazards are detected in the areas of aircraft movements, glide path or runway.

WINDEX-5000P

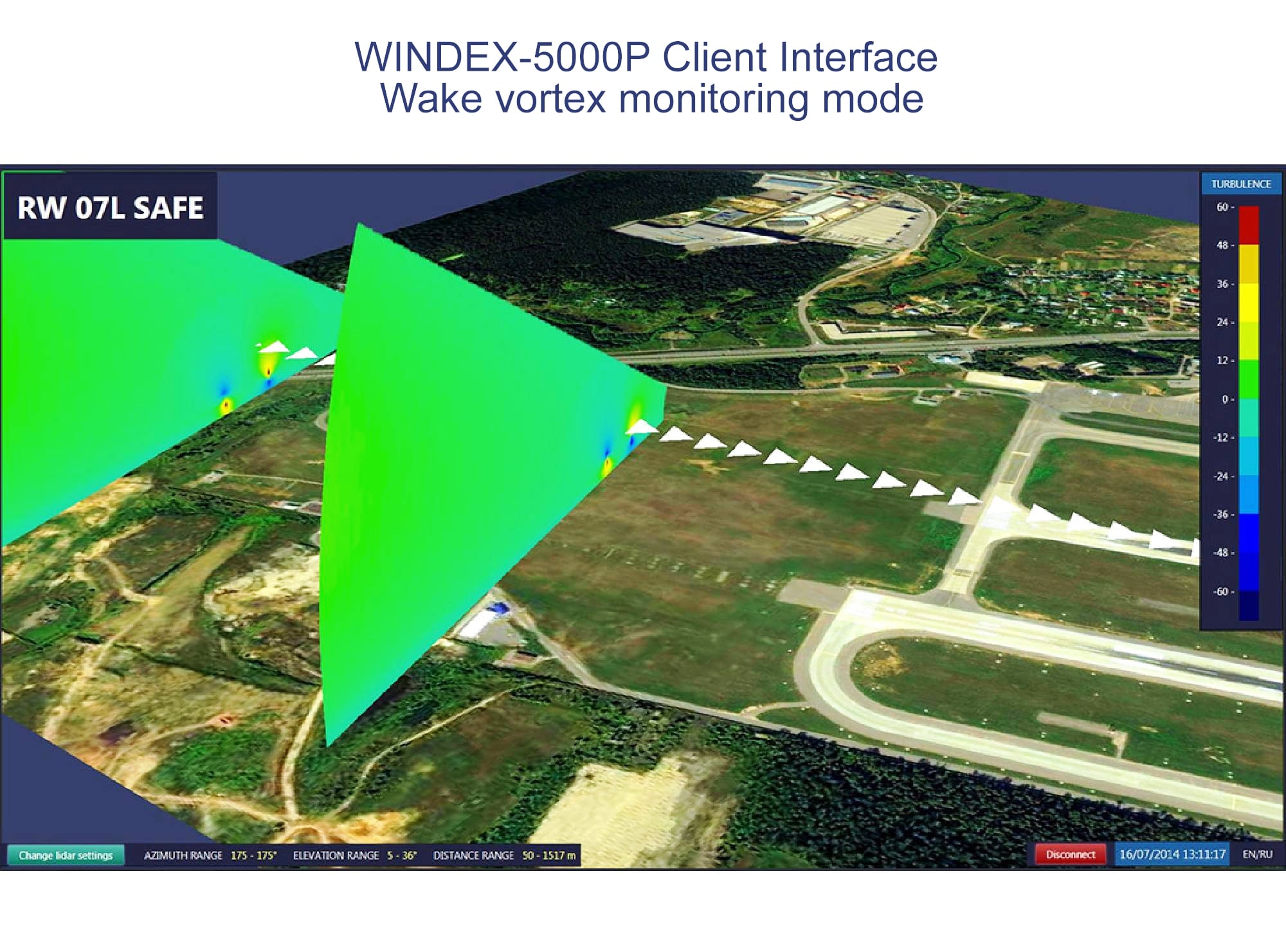

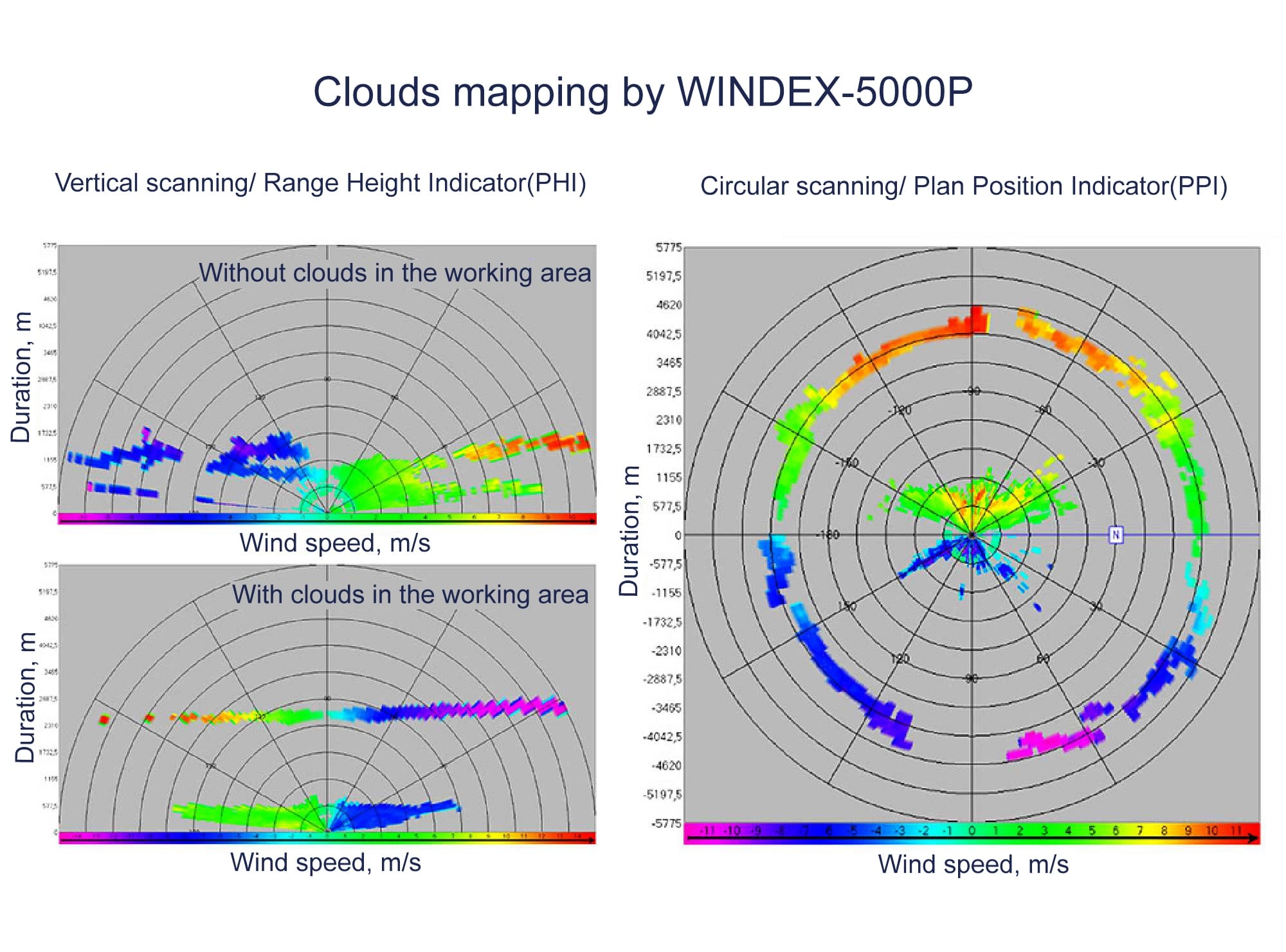

WINDEX-5000P is a modified version of the Pulse Wind Lidar with extended measurement range. It is capable of operating in a wake vortex scanning mode. WINDEX-5000P is able to perform cloud mapping functions (optionally), measuring height and cloud layer thickness in the scanning area.
