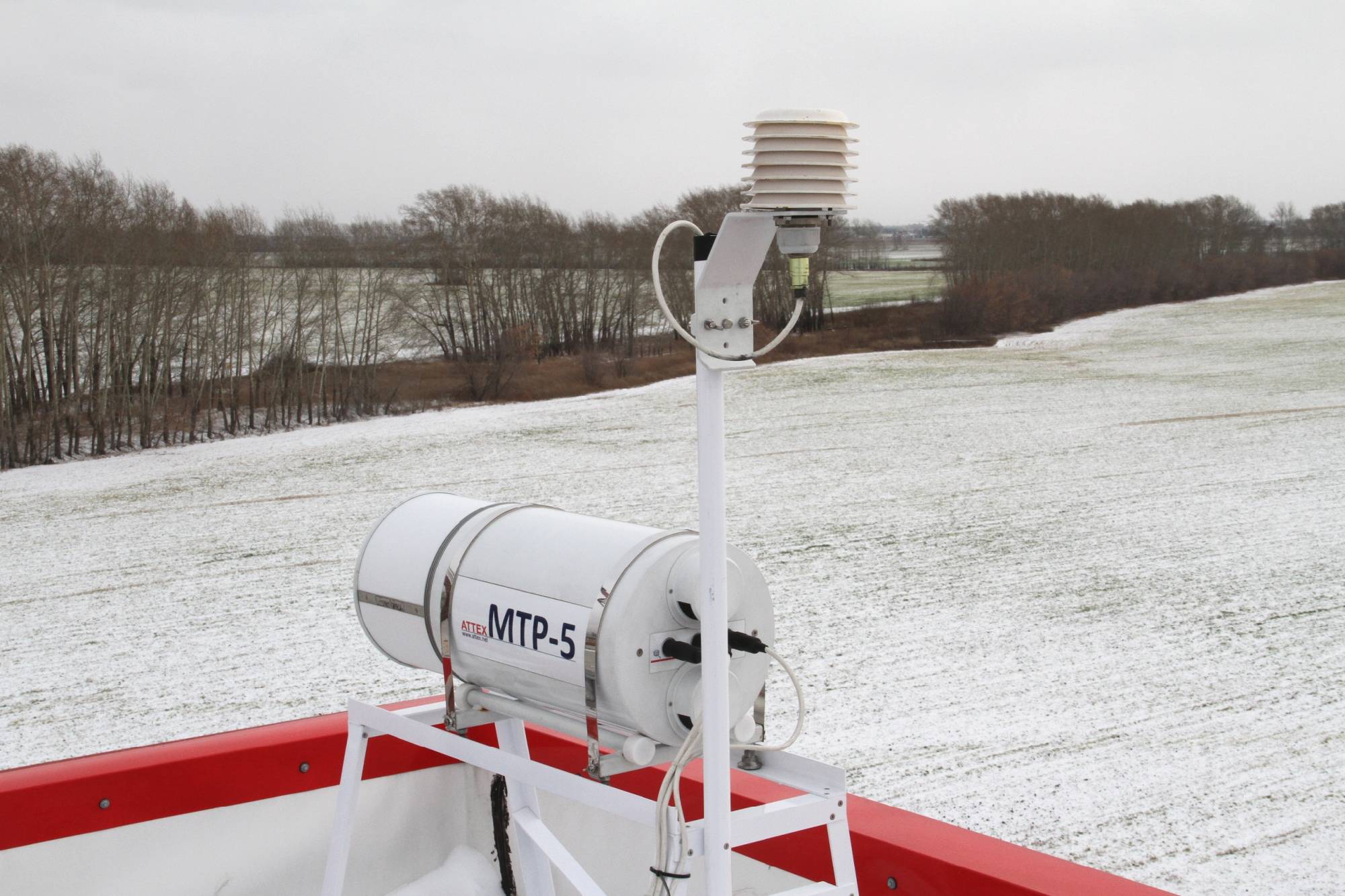

MTP-5

The MTP-5 Temperature Profiler is an autonomous, all-weather, unstaffed measurement system that provides information on temperature profiles up to a height of 2000 m and does not require the radiosonde data to restore the temperature profile.

MTP-5 operates on the ground of the revolutionary technology of remote atmosphere probing, measuring temperature profiles up to a height of 2000 m and temperature in the atmospheric boundary layer up to a height of 2000 m, starting from the earth's surface.

MTP-5 EFFICIENTLY SOLVES THE FOLLOWING TASKS:

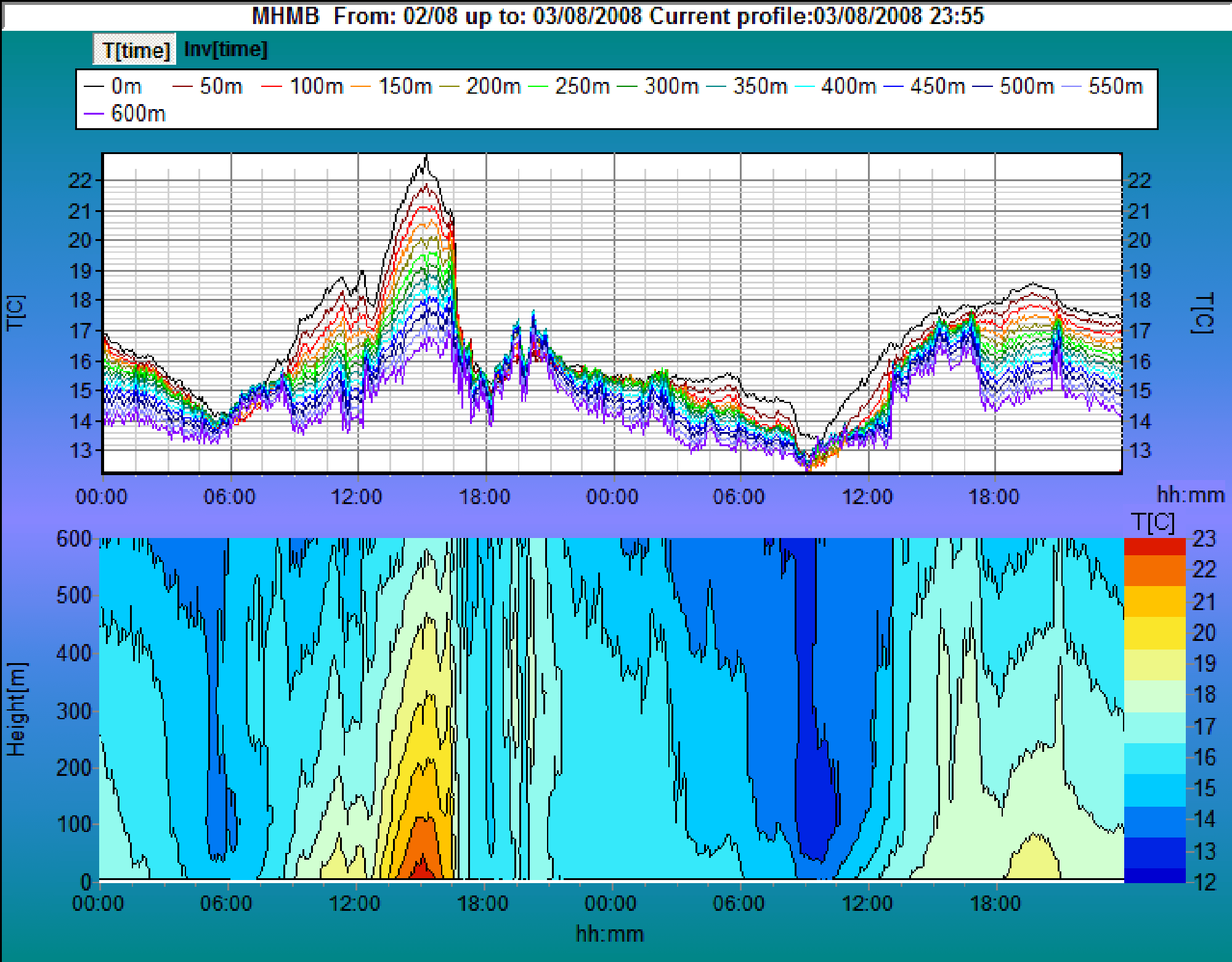

  • Representing data on a temperature profile up to a height of 2000 m;
  • Forecasting weather hazards;
  • Wind shear control;
  • Controlling the type of temperature stratification and temperature inversion characteristics;
  • Measuring the turbulence coefficient and the mixed layer altitude;
  • Forecasting fog;
  • Forecasting icing;
  • Forecasting ice rain;
  • Regional and mesoscale meteorological forecasts.

MTP-5 APPLIES TO THE FOLLOWING FIELDS:

Airports

Heliports, airfields

Control of atmospheric stability.

Laboratories

Research centers

Chemical studies of the atmosphere.

Recreation areas

Holiday resorts

Regional meteorological forecasts.

Scientific activity

Weather Analysis Centers

Studies of propagation of radio waves and laser radiation.

Metropolitan cities

Towns

Observation of the general dynamics of atmospheric conditions.

Industry

Manufacturing

Forecasting the spread of emissions from enterprises.

TECHNICAL CHARACTERISTICS:

  • Altitude range, m: up to 2000;
  • Profile measurement time interval, min: 5;
  • Operating frequency, GHz: 56.6;
  • Calibration: Self-calibration;
  • Power consumption, W: 60;
  • Operating temperature range, °C: from - 40 to + 50;
  • Weight, kg: 20.
